kbh 25-2 u discontinued

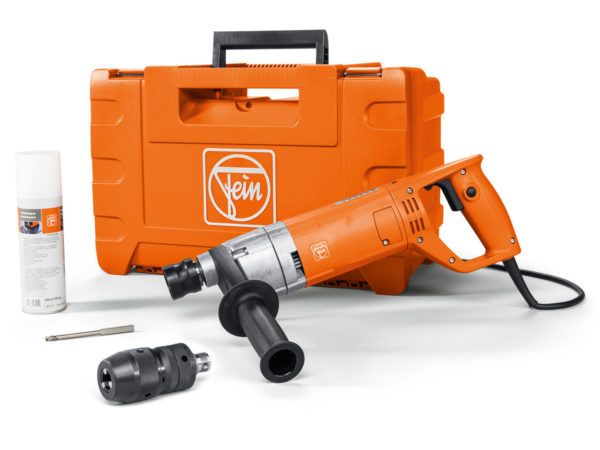

Fein Slugger KBH 25-2 U

The Slugger KBH 25-2 U allows you to work up to 6 times faster due to innovative drilling technology: Pilot hole drilled to a depth of 3/16 in [5 mm] at 1,600 rpm, followed by disengagement of the pilot bit and automatic speed change to 520 rpm for optimal cutting speed for carbide core bits. The carbide core bit finishes drilling the desired hole diameter with minimum effort and specially developed core bit cutting geometry.

Call the Ocean Machinery sales team TODAY at (954) 956-3131 or Toll Free 1 (800) 286-3624 or click button below to receive more information on the Slugger Cutter Mag Drill – KBH 25-2 U.

REQUEST INFO
Category:

Fein Slugger KBH 25-2 U

FEATURES+
  • Usable on all common metals and surfaces by adjusting the speed to the particular job
  • Very safe operation due to the torque slip clutch. Protects the user when overloaded by separation of the driver and driven sides
  • Mechanical 2-speed gearbox with speeds from 0-1,600 rpm for efficient twist drilling and forward / reverse rotation for thread tapping up to 1/2 in [M12]
  • Torque slip clutch
  • Reversible
  • FEIN high-performance motor with excellent speed stability
  • Electronic start
  • Speed selection
  • Speed-controlled tacho electronics
  • Variable electronic speed control
  • Torsion-free, barrel-type motor housing
  • Carbide core bits with optimized service life
  • Self-start lock
  • Wide range of accessories
SPECS+
Dimensions and Specifications:
Power consumption 1200 watts
Power output 680 watts
1st gear 0-520 rpm
2nd gear 0-1600 rpm
Full load torque 442 in/lbs
Hole dia. steel core bits 1″
Hole dia. aluminum core bits 1-3/16″
Mag base, max drilling depth 1″
Hole dia. steel hole saws 3-1/8″
Hole saws max drilling depth 3/16″
Tapping 1/2″
Minimum clearance 1-1/16″
Annular cutter holder QuickIN Plus
Cable with plug 13 ft
Weight according to EPTA 7.5 lbs
MEDIA+

Please call for more information about Slugger KBH 25-2 U 1 (800) 286-3624

OPTIONS+

We offer very attractive prices for Internet purchases of Annular Cutters – Please call for prices!

Description

The Slugger KBH 25-2 U allows you to work up to 6 times faster due to innovative drilling technology: Pilot hole drilled to a depth of 3/16 in [5 mm] at 1,600 rpm, followed by disengagement of the pilot bit and automatic speed change to 520 rpm for optimal cutting speed for carbide core bits. The carbide core bit finishes drilling the desired hole diameter with minimum effort and specially developed core bit cutting geometry.

Call the Ocean Machinery sales team TODAY at (954) 956-3131 or Toll Free 1 (800) 286-3624 or click button below to receive more information on the Slugger Cutter Mag Drill – KBH 25-2 U.
